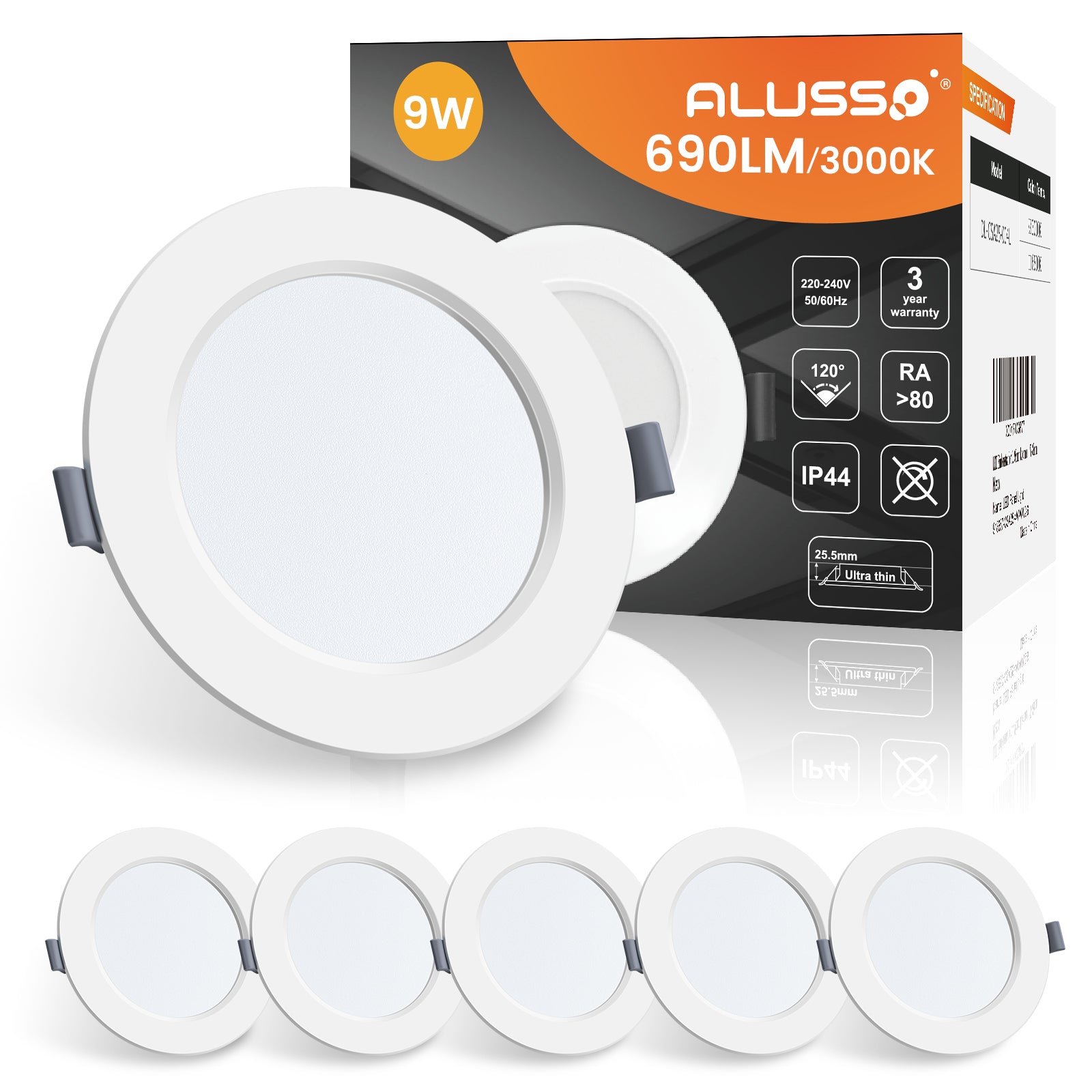

9W Utral Slim LED Recessed Ceiling Lights Ø120-130mm Cutout, Warm White 3000K, IP44, 6PACK
◾ Ultra Slim: Only 25.5mm Height.
◾ Energy Saving: Save up 90% on your electricity bill.

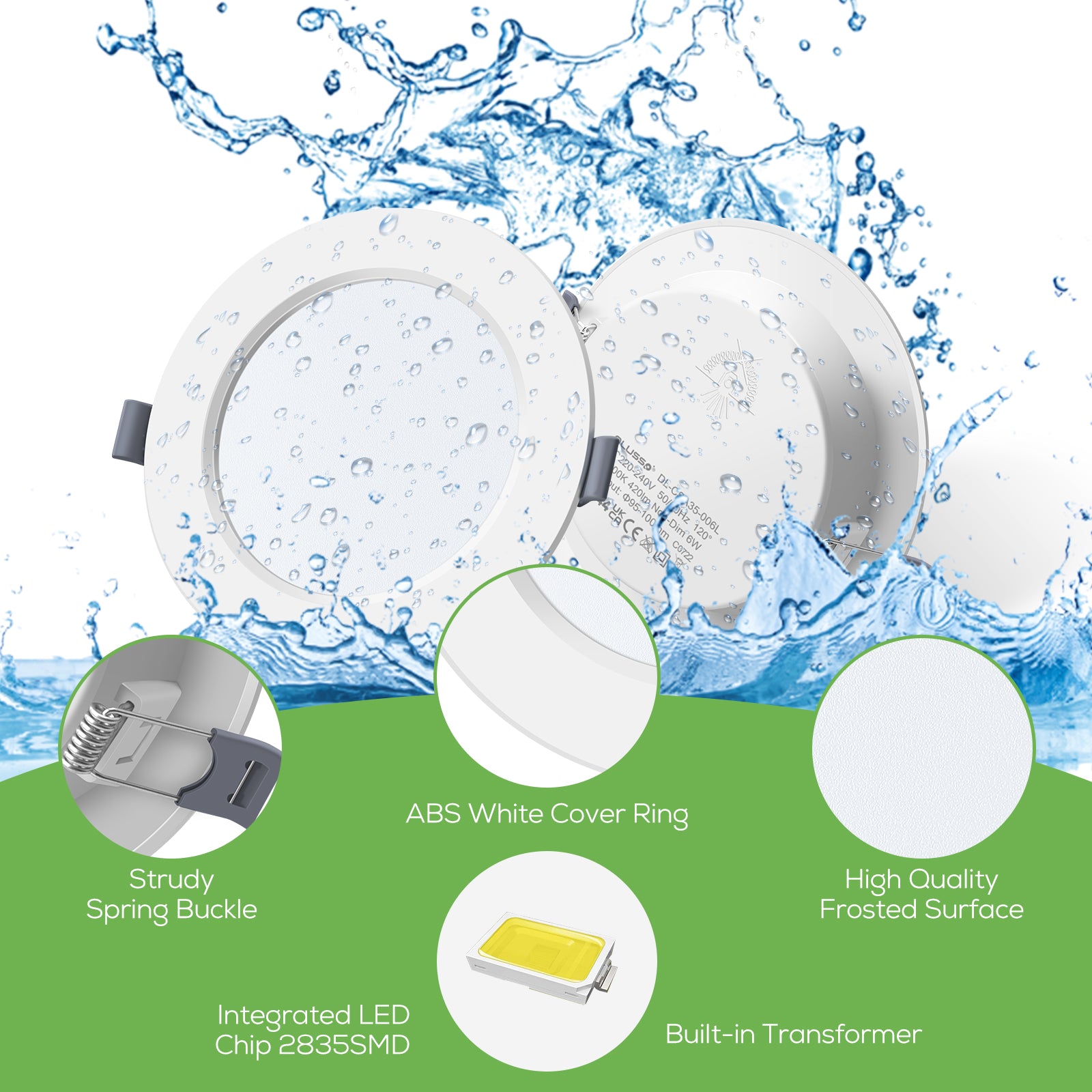

◾ High Quality: IP44; Flame Retardant PBT Plastic Frame.
◾ Long lifespan: Average lifespan over 30,000 hours.

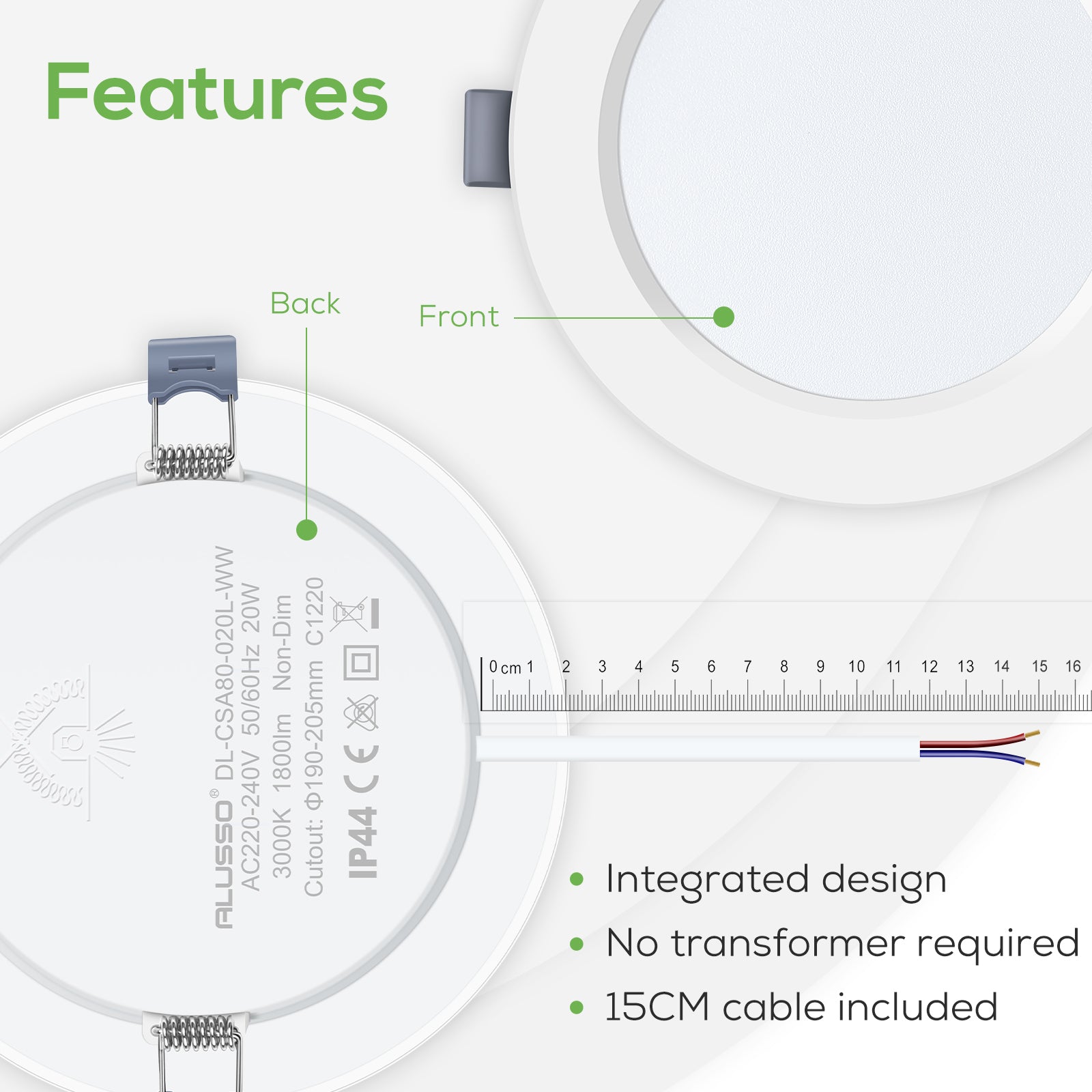

◾ Easy installation: 15 cm long cable, no other transformers required.
◾ Not Dimmable: Please do not use with dimmer.
Specification
| Power Wattage | 9W |
| Input Voltage | 220-240V ~ 50/60Hz |
| Beam Angle | 120° |

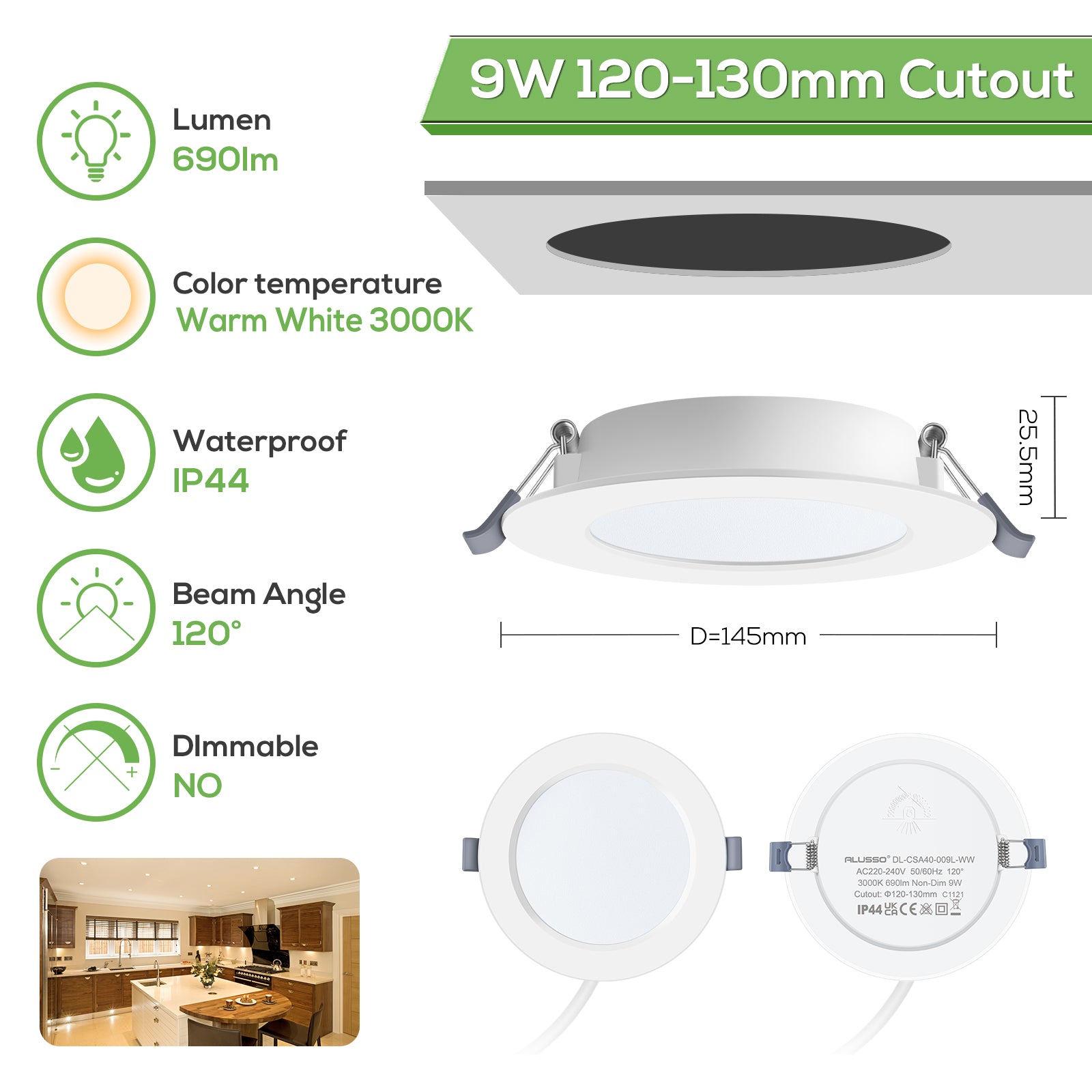

| Height | 25.5mm |
| Light Source | 2835 SMD |
| Material | Aluminum, Plastic |
| Dimmable | NO |
| IP Rated | IP44 |
| Color Rendering | > 80Ra |
-
.png)
Cut a hole in the ceiling. And turn off the power before installation.
-
.png)
Connect wires to external circuit, brown wire is connected to live line, blue wire is connected to zero line.
-
Slide the spring buckles up vertically and insert the lamp into the ceiling hole.
-
Release the spring buckles to attach the lamp to the ceiling. The installation is finished.
